255LPH Fuel Pump, High Pressure/Volume E85

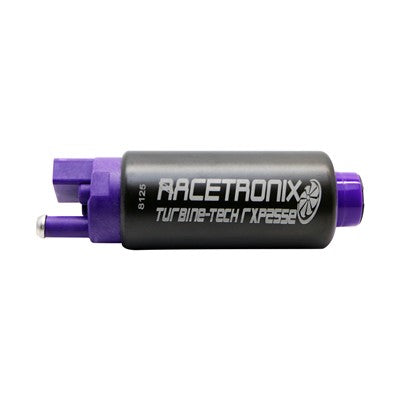

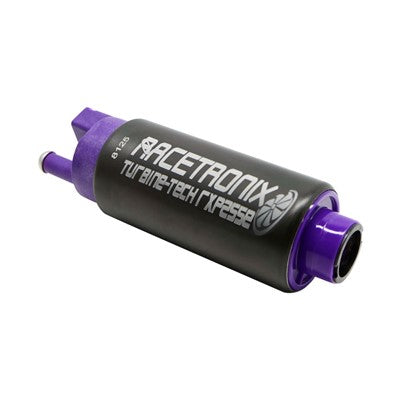

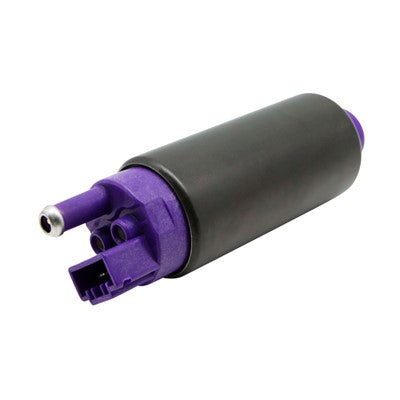

RXP255E - 255LPH E85 Fuel Pump - High Pressure / Volume, 22mm Inlet

FEATURES:

• New 100% Ethanol compatible
• 255 LPH+ (67 US GPH) @ 43 PSI @ 13.5V * (min) (275LPH nominal)
• In-tank use only / submersible design
• Reliable and quiet turbine impeller
• Can be used with EFI or carbureted applications
• May be used in pulse modulated systems (PWM)
• Center-inlet design. Same fitment as Walbro GSS340(M), GSS307(M) and GSS294M pumps.
• Each pump individually tested
• For use with gasoline and up to 100% Ethanol
• Integral check-valve
• Over-pressure safety bypass valve 110PSI

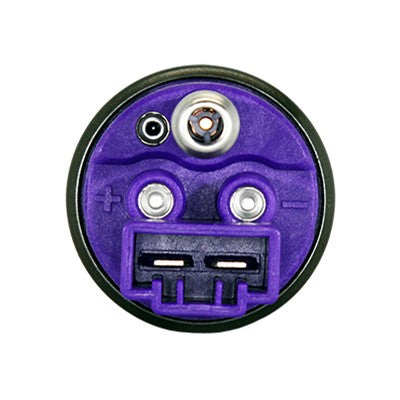

• Standard Walbro / Tyco electrical connector offers plug & play compatibility with pre-existing wiring. No need for extra in-line connectors found on all other E85 pumps.

MECHANICAL SPECS:

• Weight: 355 grams / 0.783 lbs
• Diameter: 38mm / 1.54" O.D.
• Body: Black-plated steel with laser etching

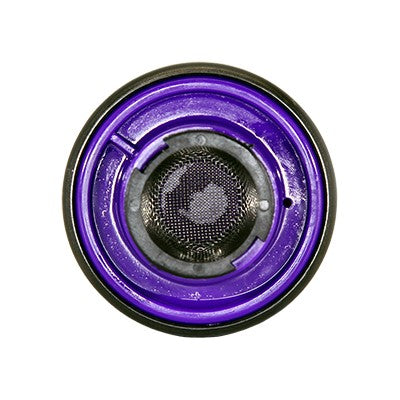

• Inlet: 22mm / 0.866" OD (non-tapered)
• Outlet: 8mm / 0.315" (with barb)
• PRV Activation: 90PSI nominal
• Impeller design: Single-scroll hard-anodized aluminum turbine

ELECTRICAL SPECS:

• Recommended operating voltage: 13.5 volts DC
• Minimum operating voltage: 6 volts DC
• Max operating voltage: 18 volts DC
• Current draw @ 43.5PSI: 8 amps (13.5VDC)
• Current draw @ 58.0PSI: 10 amps (13.5VDC)
• Current draw @ 80.0PSI: 12 amps (13.5VDC)

NOTES:

REQUIRES UPGRADED IN-TANK AND EXTERNAL WIRING FOR PROPER OPERATION.

THIS PUMP IS SOLD WITHOUT ANY WIRING, FILTERS OR MOUNTS. SELECT THE PARTS YOU REQUIRE IN OUR WEB STORE BASED ON YOUR APPLICATION
