MaxxECU PRO STANDARD

MaxxECU PRO STANDARD

MaxxECU PRO basic package includes only harness 1.

Harness 1 and has the following inputs / outputs:

• INJ 1-8
• IGN 1-8
• GPO 1-8
• 1 WBO
• DIN 1-2
• AIN 1-4
• CLT, TPS, IAT
• Trigger + Home
• CAN 1

For enhanced features MaxxECU PRO must be supplemented with more cable harnesses (see the following related articles).

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives the user complete engine control!

Fast Facts:

• Up to 12 cylinders sequentially.
• 16 injector outputs (low or high impedance injectors).
• 12 ignition outputs
• 12 inputs for exhaust gas temperature sensors (EGT).
• Built in MAP-sensor for boost pressure up to 3bar (400Kpa).
• Built in driver for dual WBO sensors (LSU 4.2 and 4.9 compatible)
• Dual E-Throttle(DBW) support.
• Dual knock sensor input
• 16 optional 0-5V inputs.
• 6 additional temperature inputs.
• 10 additional digital inputs (4 of them can be used with VR sensors)
• 30 auxiliary outputs (GPO), 8 of them +12v outputs
• 2.0-5V output.
• 1.5-10v output (sensor output).
• Dual CAN bus.
• Waterproof aluminum case.
• Connectors, software and settings completely backwards compatible with standard MaxxECU.
• Easy upgrade.

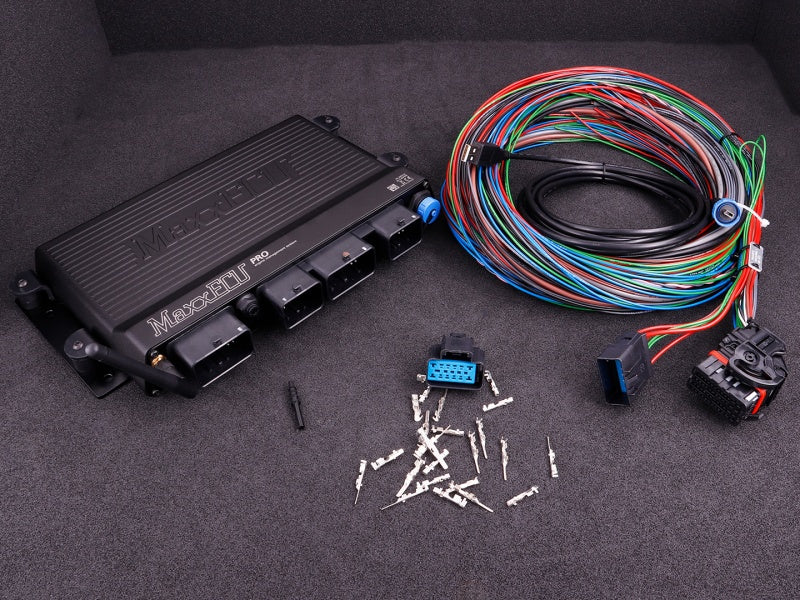

Products included:

• 1 pcs 1469 MaxxECU PRO unit only
• 1 pcs 1852 MaxxECU Quick Guide (English)

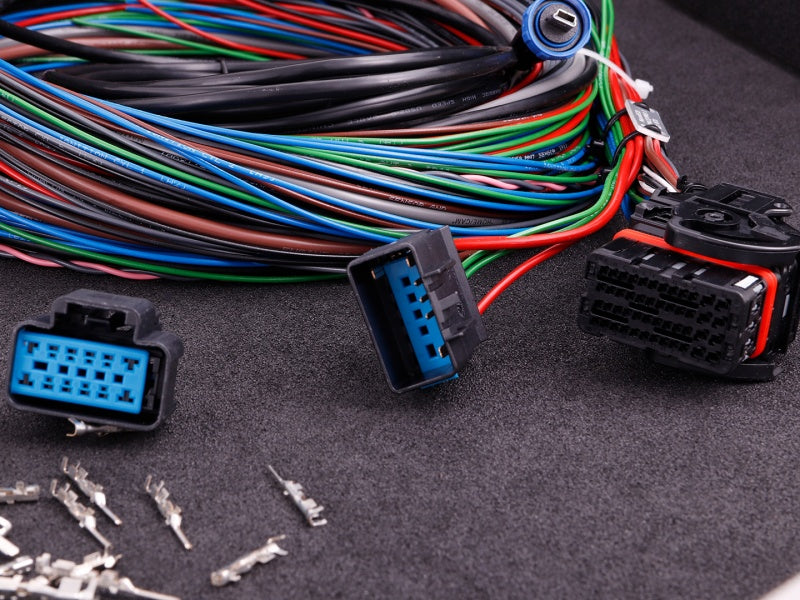

• 1 pcs 871 MaxxECU V1/RACE/PRO flying lead wiring harness connector 1
• 1 pcs 927 Connector 12-way socket housing GT150 (fits MaxxECU harness)
• 1 pcs 949 MaxxECU Bluetooth mobile antenna
• 1 pcs 1767 MaxxECU push-lock to barb (MAP-sensor)
• 1 pcs 1606 MaxxECU PRO / RACE H2O USB-cable 1.5m
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 2214 MaxxECU PRO bracket kit
• 1 pcs 2219 MaxxECU PRO wiring diagram (printed)
