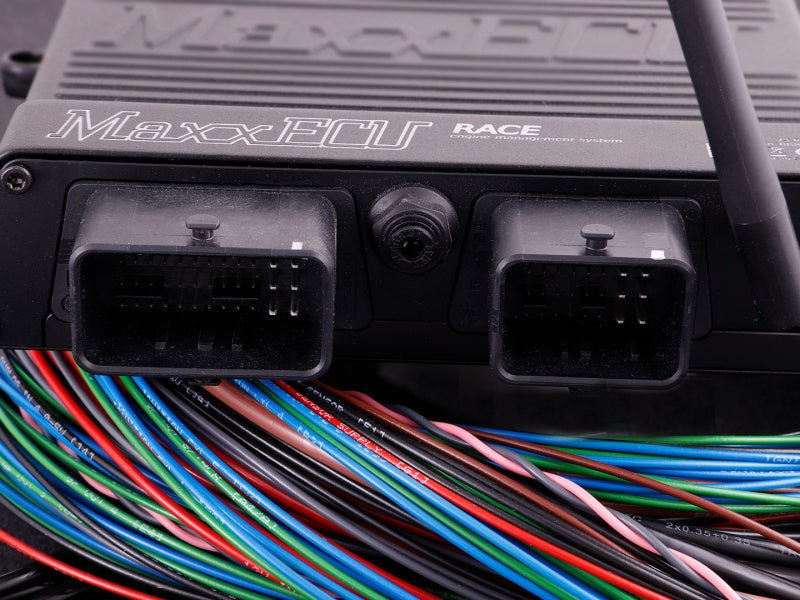

MaxxECU RACE STANDARD (ECU, harness 1 and accessories)

MaxxECU RACE STANDARD (ECU, harness 1 and accessories)

To get all functions, you need to complete with harness 2 (knock, E-Throttle etc).

MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.

Specification:

• All 3-12 cylinder engines (4-stroke)
• Up to 8 cylinders fully sequentially
• Up to 12 cylinders in wasted spark
• Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
• 2 trigger inputs. VR or digital. Automatic trigger level detection
• 2 extra temperature sensors
• 2 knock sensor inputs
• 6 extra 0-5V inputs
• 4 extra digital inputs (VR / hall) or switches
• 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
• 8 peak/hold injector outputs
• 8 ignition outputs
• 9 extra LOW DRIVING outputs for additional features
• 2 extra +12V DRIVING outputs
• 4 extra motor outputs

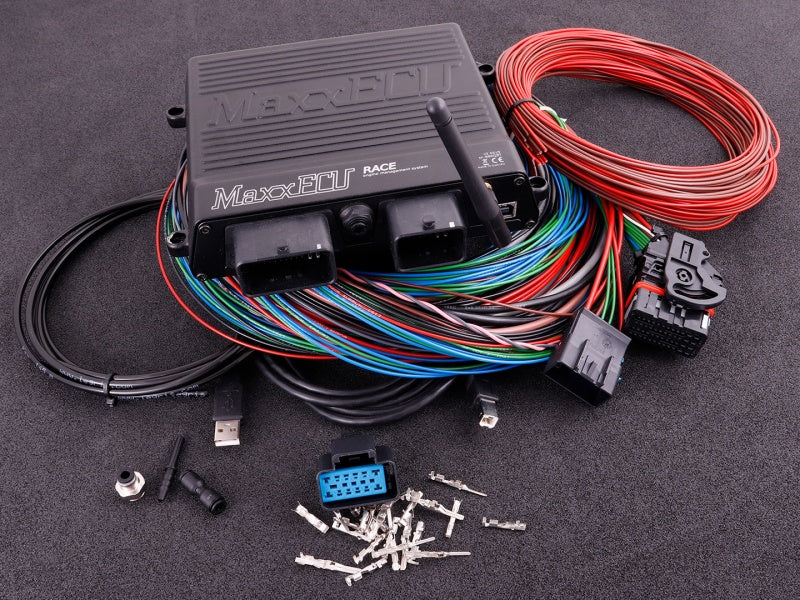

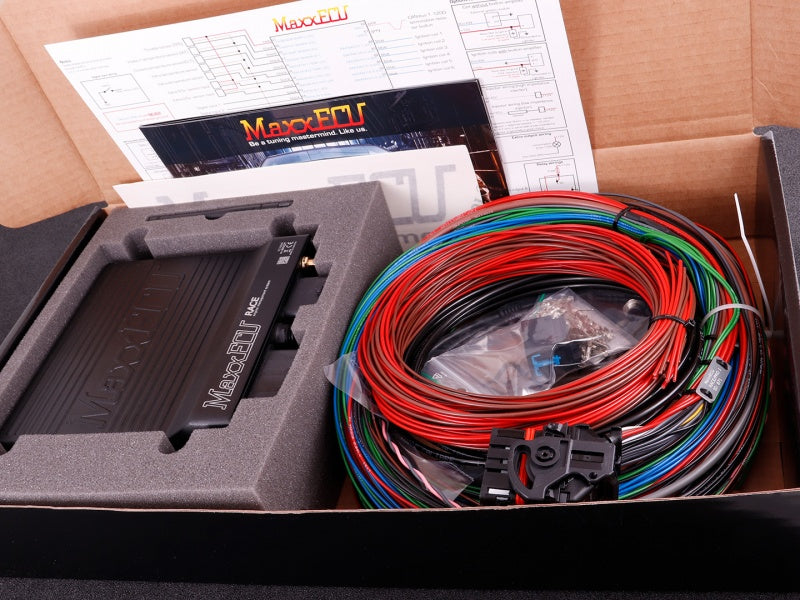

Products included:

• 1 pcs 1783 MaxxECU RACE unit without accessories
• 1 pcs 871 MaxxECU V1/RACE/PRO flying lead wiring harness connector 1
• 1 pcs 927 Connector 12-way socket housing GT150 (fits MaxxECU harness)
• 1 pcs 949 MaxxECU Bluetooth mobile antenna
• 1 pcs 924 MaxxECU USB PC cable 1.5m (STREET/V1/RACE)
• 1 pcs 928 MaxxECU hose kit (MAP sensor incl nipples)
• 1 pcs 1052 MaxxECU extra cable for installations
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 1911 MaxxECU RACE wiring diagram (printed)
• 1 pcs 1852 MaxxECU Quick Guide (English)
