MaxxECU SPORT STANDARD (ECU, harness and accessories)

MaxxECU SPORT STANDARD (ECU, harness and accessories)

MaxxECU SPORT, based on our market leading MaxxECU V1 and uses the same easy to use, yet powerful MTune software.

Fast Facts:

• Controls up to 6 cylinders sequentially (12 in wasted spark).
• Built-in 400kPa MAP-sensor.
• Wideband lambda directly into MaxxECU without external electronics.
• Fast and reliable USB PC-communication.
• Bluetooth
• 2 trigger inputs.
• IAT, TPS, CLT analog inputs.
• Built-in wideband (LSU 4.2 or 4.9).
• Built-in 400kPa MAP-sensor.
• E-Throttle support.
• 2 extra analog temperature inputs.
• 2 extra digital inputs.
• 6 injector outputs (high/low impedance).
• 6 ignition outputs (no internal amplifiers).
• 7 extra flexible outputs (GPO).
• 2 extra motor outputs. GPO 10-11 (2A)
• CAN bus
• Aluminium case
• MTune PC-software with USB connection.
• Superfast Cortex M3 120Mhz main processor.

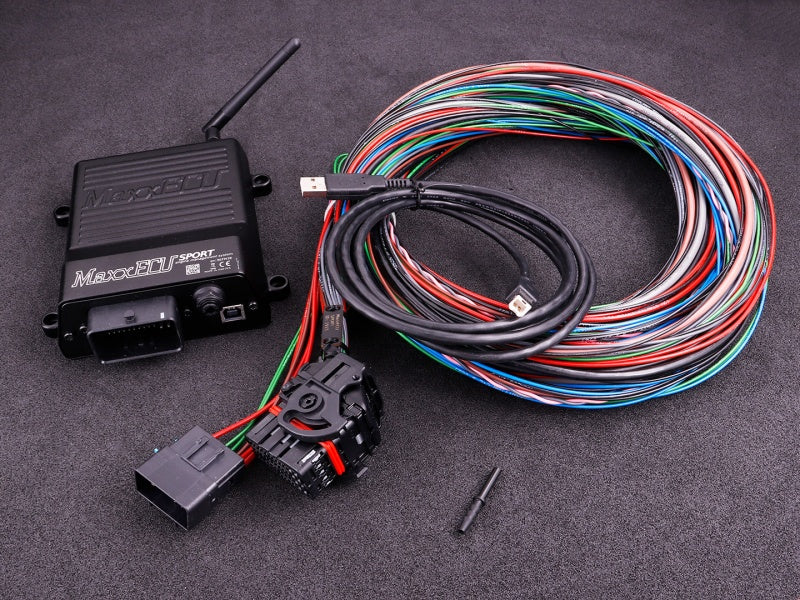

Products included:

• 1 pcs 1913 MaxxECU SPORT unit
• 1 pcs 1915 MaxxECU SPORT cable harness
• 1 pcs 924 MaxxECU USB PC cable 1.5m (STREET/V1/RACE)
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 1767 MaxxECU push-lock to barb (MAP-sensor)
• 1 pcs 1912 MaxxECU SPORT wiring diagram (printed)
• 1 pcs 1852 MaxxECU Quick Guide (English)
• 1 pcs 949 MaxxECU Bluetooth mobile antenna
